Flush Mount Track (Rail)

The Flush Mount Track is the strongest and most discreet wall-mounted track system that is installed as a recessed art rail at the construction phase of a project.

Request Sample

Bespoke options available
Choose Finish:
from $152.88 (ex VAT)
updown
Important: You may also need these

This is our most robust and our most discreet track, with a narrow slot of just 8mm visible when the track is finished flush with the wall. The Flush Mount Track should be considered and specified pre-construction as installation occurs just prior to plaster board or other wall liners.

Please Contact us while designing your project to ensure the best installation.

Key Features of the Flush Mount Track:

  • This track is designed to be recessed, incorporated into the wall during construction and the finish is flush with the wall surface
  • Our most discreet track system – aperture just 8mm
  • Architectural and sleek track system for Hanging Artworks
  • Use in conjunction with our Flush Mount Hanging Sets or hang directly on the track
  • Choice of white or silver
  • Comes in 2.5m lengths


Need a sample for your project? Request a sample here

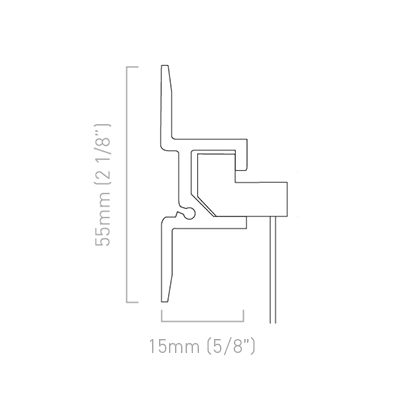

Diagram explaining the dimensions of the Flush Mount Track.

Type:  Artwork Hanging Solution

Material & Finish:  Anodised aluminium extrusion that is available in either soft silver finish or white

Dimensions:  15mm width x 55mm vertical height. Sold in 2.5m lengths.

Installation:  Pre-drilled 300mm centres and cut to length on site.

Flush Installation:  The face of the Flush Mount Track must be flush with the finished wall surface in order for the art hanging Top Blocks to slide into the hanging slot.

Weight Loading:   Fixings must be into hardwood or metal for maximum support. The standard fixing (300mm) will support artworks up to 150kgs when hung on two suspended supports.

Note: This track has the ability to support substantially more weight per artwork. For heavier weights, closer fixing points of 150mm to 100mm is recommended. Heavier weights may require extended top blocks and bespoke barrels, please contact us for a consultation.

UK Installation Instructions PDF:  Click here to download

US Installation Instructions PDF:  Click here to download

For the best result we recommend installation during the construction phase of your project. After fixing, most of the track is then covered by the drywall cladding, meaning that the Flush Mount Track becomes a seamless element of the building.

The track comes pre-drilled ready for fixing. If you wish to hang very heavy artworks (in excess of 150 kg) then we recommend drilling more frequent fixing points. The track can then sustain loads in excess of 150 kg with the appropriate clips and rods. Please contact us for consultation on high load hangings before purchase.

There are a choice of components that will work with the Flush Mount Track to suit your installation. The components are sold in sets that include a pair of hanging lengths, top blocks and fixings. You will need a set per work, and can choose either a barrel for use with our Ryman Hanger, or a hook if your work will be hung with a wire. All accessories can also be purchased separately should you want to hang more than one work per hanging length set.

Included:

  • 1x 2.5m length Flush Mount Track



Not Included/You may also need:

Museum grade products, designed for all settings. We design and manufacture high quality products in the UK to display, protect and explain artworks as well as to guide and inform visitors. Absolute has built a reputation for innovative, high-specification solutions for museums and galleries around the world, which are available for use in all types of environments, from attractions and hospitality venues to airports, restaurants and everything in between. For more information about how our product solutions could support or enhance your space, please contact us.

Every effort is made to despatch the same day for orders placed before 13:00, this is subject to warehouse capacity and stock availability. We use UPS courier service; all prices are calculated on weight at the checkout and are delivered by the courier between 8am – 6pm. Please contact us if your delivery country is unavailable for website ordering, this will be shown during checkout. Also note that international orders delivery time does not include customs clearance. Further information about delivery please contact us.

We design and manufacture our products in house, which means we can adapt our products to meet your specific needs.

Customisation - All of our art hanging track (rails) can be:

  • Powder coated in a custom RAL colour
  • Cut to specific lengths
  • Mitred corners
  • Additional fixing points for extra weight carrying capacity
  • Rolled to a specific curvature for curved walls

To discuss a custom finish or application of our track systems, please contact us.
