T Track (Rail)

A strong and versatile hanging system that is designed to be recessed at the juncture of wall and ceiling.

 Request Sample

Choose Cover Type:
Choose Finish:
from $126.42 (ex VAT)
Important: You may also need these

T Track is highly discreet as it is designed to be recessed above the wall liner and tight against the ceiling or under a cornice. This provides an architectural transition that is flush with the lower wall.

T Track should be considered and specified pre-construction as installation considerations should occur prior to plaster board, other wall liners or cornice work. It can be fitted during construction, or a clean reveal can be prepared for an after construction fit. This track can also be built out to occur over deeper fabric wrapped or other material panels. We recommend the T Track Cover to ensure a clean finish.

Please Contact us while designing your project to ensure the best installation.

Key Features of the T Track:

  • An architectural and sleek track system for Hanging Artworks
  • Modular-use in conjunction with our T Track Hanging Sets
  • Can be incorporated into the wall during construction
  • Works above wall liners and panels for a flush wall look
  • Designed to fit under cornices
  • Choice of white or silver
  • Comes in 2.5m lengths
  • End caps available on request (not supplied as standard) - please contact us if you require them.

Need a sample for your project? Request a sample here

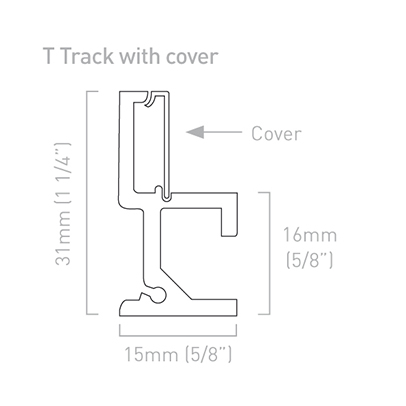

Diagram explaining the dimensions of the T Track artwork hanging solution.

Type:  Artwork Hanging Solution

Material & Finish:  Anodised aluminium extrusion that is available in either soft silver finish or white

Dimensions:  15mm width x 31mm vertical height. Sold in 2.5m lengths

Installation: Pre-drilled at 300mm centres and easy to cut to length on site. We recommend mitring inside and outside corners with a chop saw.

Weight Loading:   Fixings must be into hardwood or metal for maximum support. The standard fixing (300mm) will support artworks up to 150kgs when hung on two suspended supports.

Note: This track has the ability to support substantially more weight per artwork. For heavier weights, closer fixing points of 150mm to 100mm is recommended. Heavier weights may require extended top blocks and bespoke barrels, please contact us for a consultation.

UK Installation Instructions PDF:  Click here to download

US Installation Instructions PDF:  Click here to download

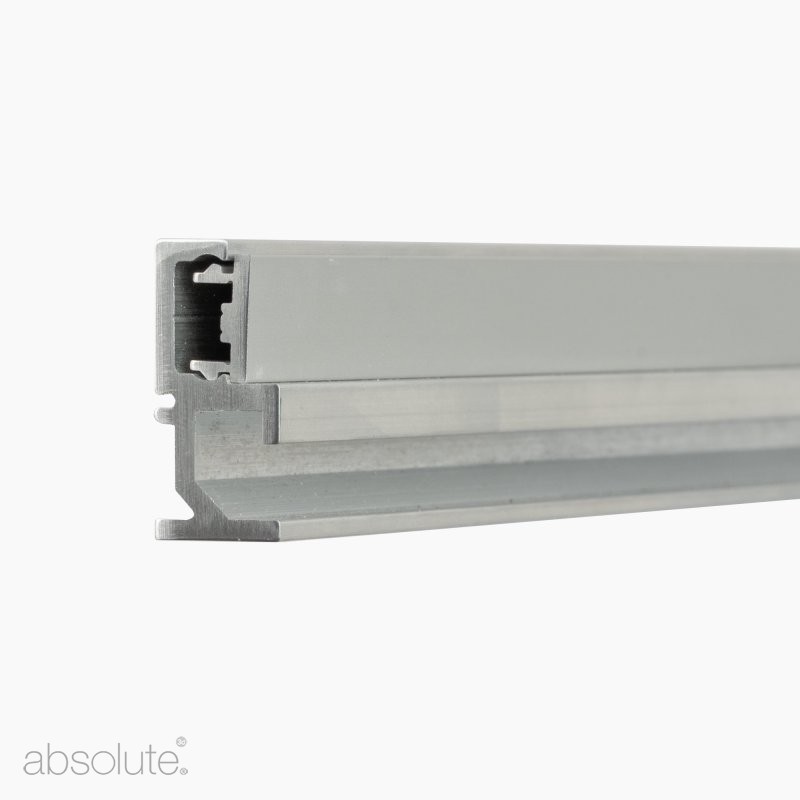

For the most discreet finish we recommend that the T Track is installed before any wall clading is fixed. This means screwing the track into place tight up against the ceiling and then fitting the drywall snug to the underside of the track. Our optional T Track Cover will then add the finishing touch for the most subtle look. T Track Cover is available to purchase individually upon request. This is sold in a standard length of 2.5m.

Alternatively the track can be inserted into a finished reveal directly below the ceiling. Be sure to leave a couple millimetres clearance to take into account uneven surfaces.

If you are installing multiple lengths of T Track, we supply simple connecting pins that help you to align the lengths of track for an even finish. These are inserted in the 2mm holes at the end of the track, connecting both lengths. Connecting pins will only be supplied with orders of 2 or more lengths.

If the T Track is wrapping around the room, mitre the inside and outside corners. This provides clean corners without showing exposed ends of track.

Next steps - Choose the right hanging method.

Once you have selected your required track you will need to specify the type of hanging set you require. There are a number of factors to consider e.g. strength, appearance, level of security etc.

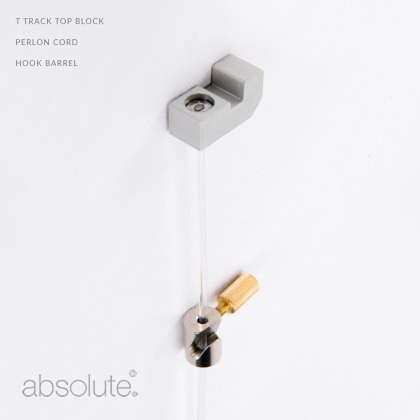

There are a choice of components that will work with the T Track to suit your installation. The components are sold in sets that include a pair of hanging lengths, top blocks and fixings. You will need a set per work, and can choose either a barrel for use with our Ryman Hanger, or a hook if your work will be hung with a wire. All accessories can also be purchased separately here should you want to hang more than one work per hanging length set.




  • 1x 2.5m length of T Track


Not Included/You may also need:

Museum grade products, designed for all settings. We design and manufacture high quality products in the UK to display, protect and explain artworks as well as to guide and inform visitors. Absolute has built a reputation for innovative, high-specification solutions for museums and galleries around the world, which are available for use in all types of environments, from attractions and hospitality venues to airports, restaurants and everything in between. For more information about how our product solutions could support or enhance your space, please contact us.

Every effort is made to despatch the same day for orders placed before 13:00, this is subject to warehouse capacity and stock availability. We use UPS courier service; all prices are calculated on weight at the checkout and are delivered by the courier between 8am – 6pm. Please contact us if your delivery country is unavailable for website ordering, this will be shown during checkout. Also note that international orders delivery time does not include customs clearance. Further information about delivery please contact us.
