Hanging Set for H Track

These hanging sets are designed to complement our hanging track to offer the perfect solution for your space.

Choose Rod, Cable or Cord:
Choose Length (of rod, cable or cord):
Choose Barrel or Hook (Connection to artwork type):
from $39.69 (ex VAT)
Important: You may also need these

Product Description

Our H Track Hanging Sets include a pair of H Track top blocks, hanging lengths and barrels (artwork connection). You will need one set per work. All accessories can also be purchased separately should you wish to hang more than one work per hanging length set.

Please contact us well ahead of time so that we can assist with defining the best hanging sets for your project.

Step 1: Choose your hanging length type: Rod, Cable or Cord.

Our modular systems mean you can choose the exact hanging system to suit your wall.  Please note that our H Track will support as standard up to 150kg per artwork. They have the ability to support heavier weights, please contact us for consultation. You have the choice of the following hanging length types:

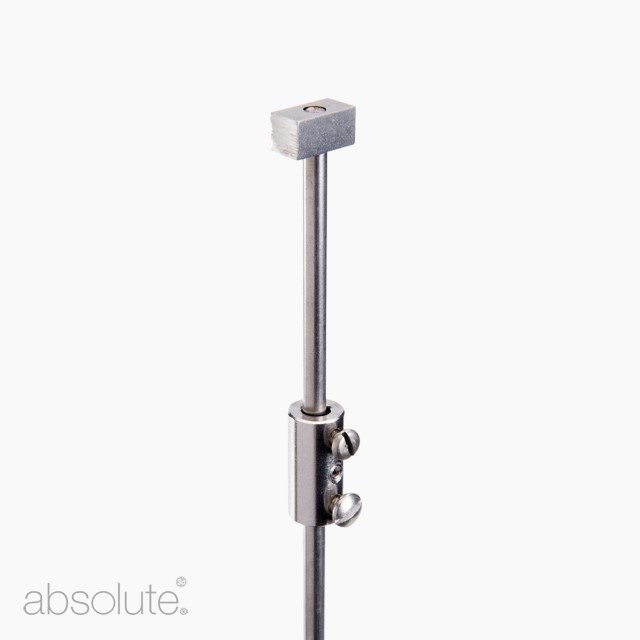

  • Stainless Steel Rods provide the most rigid installation, can be supplied in silver or white and a pair of rods will support as standard artworks up to 150 kg. Our Rods have the ability to support heavier weights, please contact us to discuss.
  • Stainless Steel Cables provide the strongest flexible system and a pair of cables will support artworks up to 60 kg.
  • Perlon Cords are semi-transparent and blend with most wall surfaces. Cords are the best choice for a discreet installation and a pair will support artworks up to 25kg.

Step 2: Choose your hanging length drop: 1.5m or 2.5m
Our hanging lengths are available online in 1.5m or 2.5m lengths, however custom lengths are also available. Please contact us.

Step 3: Choose the type of connection to connect with you art: Ryman Barrel or Hook Barrel
Choose a Ryman Barrel for connecting to one of our Ryman Hangers on the back of the artwork. If your artwork has a cord at the back, then choose a Hook Barrel for hanging your artwork.

Key Features of the Hanging Sets:

  • Choice of finish to suit your walls
  • Choice of tolerances up to 150kg to suit the size of artwork
  • Standard hanging lengths of 1.5 m and 2.5m
  • Custom hanging lengths can be made to order
  • All accessories can be purchased separately for hanging extra artworks


Note that if H Track Hanging Sets are used with our Panel Clips, the Panel Clips will only support 50kg per artwork no matter the type of Hanging Set selected.

Product Specification

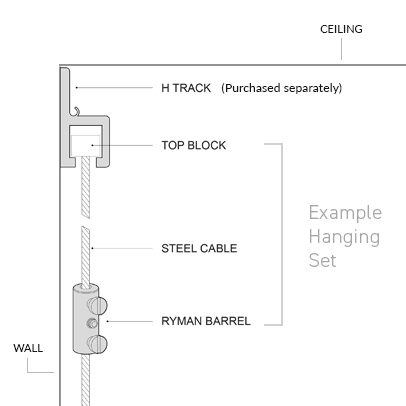

Diagram explaining the components and function of the H Track Hanging Set.

Type:  Artwork Hanging Solution

Material & Finish:  Varies depending on selection

Dimensions:  Cable, Rod or Cord available in 1.5m or 2.5m length (custom lengths also available, please contact us)

Weight Loading: H Track will support as standard up to 150kg per artwork (depending on hanging set elements chosen), although can support heavier, please contact us.

UK Installation Instructions PDF:  Click here to download

US Installation Instructions PDF:  Click here to download

Expert Advice

Hanging more than one artwork vertically stacked?

If you would like to hang artworks from our track systems whereby there are artworks vertically 'stacked' on the same hanging set, you are able to do this (assuming the combined weight is within the track and hanging sets maximum capacity). Simply purchase one complete hanging set, then purchase an extra set of artwork connections - either the Ryman Barrels or Hook Barrels.

If you would like any advise specific to your space and artworks about track or hanging sets, please do contact us, a member of our experienced customer care team would be happy to help you.



What's Included


  • 2 x Top Blocks
  • 2 x Hanging Lengths
  • 2 x Barrels

Not Included/You may also require:

Museum Grade

Museum grade products, designed for all settings. We design and manufacture high quality products in the UK to display, protect and explain artworks as well as to guide and inform visitors. Absolute has built a reputation for innovative, high-specification solutions for museums and galleries around the world, which are available for use in all types of environments, from attractions and hospitality venues to airports, restaurants and everything in between. For more information about how our product solutions could support or enhance your space, please contact us.

Delivery Information

Every effort is made to despatch the same day for orders placed before 13:00, this is subject to warehouse capacity and stock availability. We use UPS courier service; all prices are calculated on weight at the checkout and are delivered by the courier between 8am – 6pm. Please contact us if your delivery country is unavailable for website ordering, this will be shown during checkout. Also note that international orders delivery time does not include customs clearance. Further information about delivery please contact us.
